RM3 Mooring (WEC-Sim/MoorDyn) - Verification
Overview

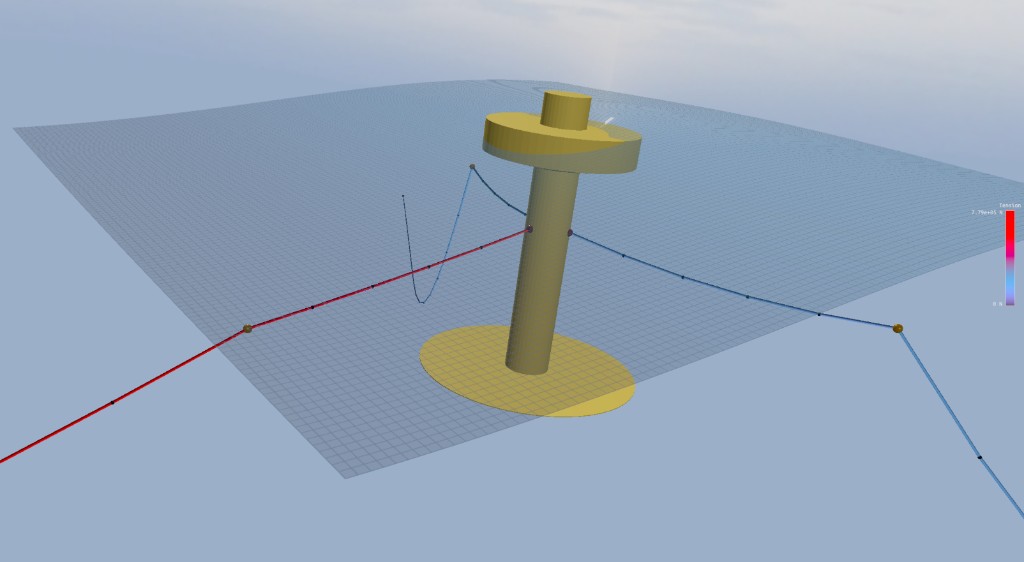

This verification case compares HydroChrono with MoorDyn against the WEC-Sim/MoorDyn co-simulation of the RM3 (Reference Model 3) two-body point absorber with a 3-line catenary mooring (each line has two segments—anchor to clump weight, then clump to fairlead—giving 6 MoorDyn line segments in total). The reference case is the WEC-Sim Applications Mooring example. Running that case produces MATLAB outputs that were converted to plain-text reference data using data/verification/rm3_mooring/extract_wecsim_ref.py; those reference files live in data/verification/rm3_mooring/reference/ and are used by the HydroChrono verification tests and comparison plots.
Model and input parameters
Key parameters match the WEC-Sim/MoorDyn RM3 mooring setup. The verification test uses the same timestep, ramp, wave elevation import, body masses and inertias, PTO settings, and MoorDyn configuration as the reference.
| Parameter | Value |
|---|---|
| Timestep | 0.01 s |
| Simulation | 60 s comparison window (after 40 s ramp) |
| Ramp time | 40 s |
| Wave type | Elevation import (irregular, from reference) |
| Water depth | 70 m |
| Float mass | 725 834 kg |
| Plate mass | 886 691 kg |
| Float inertia | [20907301, 21306090.66, 37085481.11] kg·m² |
| Plate inertia | [94419614.57, 94407091.24, 28542224.82] kg·m² |
| Plate init disp | [0, 0, -0.21] m |
| PTO damping | 1 200 000 N·s/m |
| PTO stiffness | 0 |
| MoorDyn | 3 lines, 6 segments (anchor–clump + clump–fairlead each); see below |
Reference data were produced from the WEC-Sim Applications Mooring case and extracted with data/verification/rm3_mooring/extract_wecsim_ref.py.
Mooring configuration
The mooring is defined in the MoorDyn input file data/yaml/rm3/mooring/lines_rm3.txt. There are 3 physical mooring lines, each composed of two chain segments: anchor → clump weight (240 m) and clump weight → fairlead on the plate (40 m). MoorDyn treats these as 6 line segments; the verification compares fairlead tensions for the three lines attached to the body (FairTen4, FairTen5, FairTen6). The MoorDyn input file contents are:
---------------------- LINE TYPES -----------------------------------------------------
LineType Diam Mass/m EA BA/-zeta EI Cd Ca CdAx CaAx
(-) (m) (kg/m) (N) (N-s/-) (N-m^2) (-) (-) (-) (-)
Chain 0.144 126.0 583.376E6 -0.8 0 1.6 1.0 0.05 0.0
---------------------------- BODIES -----------------------------------------------------
ID Attachment X0 Y0 Z0 r0 p0 y0 Mass CG* I* Volume CdA* Ca
(#) (-) (m) (m) (m) (deg) (deg) (deg) (kg) (m) (kg-m^2) (m^3) (m^2) (-)
1 Coupled 0 0 -21.5 0 0 0 0.0 0 0 0 0 0
---------------------- POINTS -----------------------------------------------------
ID Attachment X Y Z Mass Volume CdA CA
(#) (word/ID) (m) (m) (m) (kg) (mˆ3) (m^2) (-)
1 Body1 -3.0 0 11.50 0 0 0 0
2 Fixed -267.0 0 -70.00 0 0 0 0
3 Body1 1.5 2.598 11.50 0 0 0 0
4 Fixed 133.5 231.23 -70.00 0 0 0 0
5 Body1 1.5 -2.598 11.50 0 0 0 0
6 Fixed 133.5 -231.23 -70.00 0 0 0 0
7 Free -40.0 0 -10.00 16755 33.510 12.566 1
8 Free 20.0 34.642 -10.00 16755 33.510 12.566 1
9 Free 20.0 -34.642 -10.00 16755 33.510 12.566 1
---------------------- LINES -----------------------------------------------------
ID LineType AttachA AttachB UnstrLen NumSegs LineOutputs
(#) (-) (#) (#) (m) (-) (-)
1 Chain 2 7 240.0 15 tp
2 Chain 4 8 240.0 15 tp
3 Chain 6 9 240.0 15 tp
4 Chain 7 1 40.0 5 tp
5 Chain 8 3 40.0 5 tp
6 Chain 9 5 40.0 5 tp
---------------------- SOLVER OPTIONS-----------------------------------------
0.0005 dtM - time step to use in mooring integration
0 WaveKin - wave kinematics flag (0=neglect, the only option currently supported)
3.0e6 kBot - bottom stiffness
3.0e5 cBot - bottom damping
70 WtrDpth - water depth
5.0 CdScaleIC - factor by which to scale drag coefficients during dynamic relaxation IC gen
0.001 threshIC - threshold for IC con
200.0 TmaxIC - max time for ic gen (s)
2 writeLog - Write a log file
0 WriteUnits - 0: do not write the units header on the output files
1 disableOutTime - 1: do not write timesteps to command window
-------------------------- OUTPUTS --------------------------------
FairTen4
FairTen5
FairTen6
--------------------- need this line ------------------
Lines 1–3 run from anchor points (2, 4, 6) to clump weights (7, 8, 9); lines 4–6 run from clump weights to the plate (body) attachment points (1, 3, 5). FairTen4, FairTen5, FairTen6 are the tensions at the fairlead end of lines 4, 5, 6.
Verification results

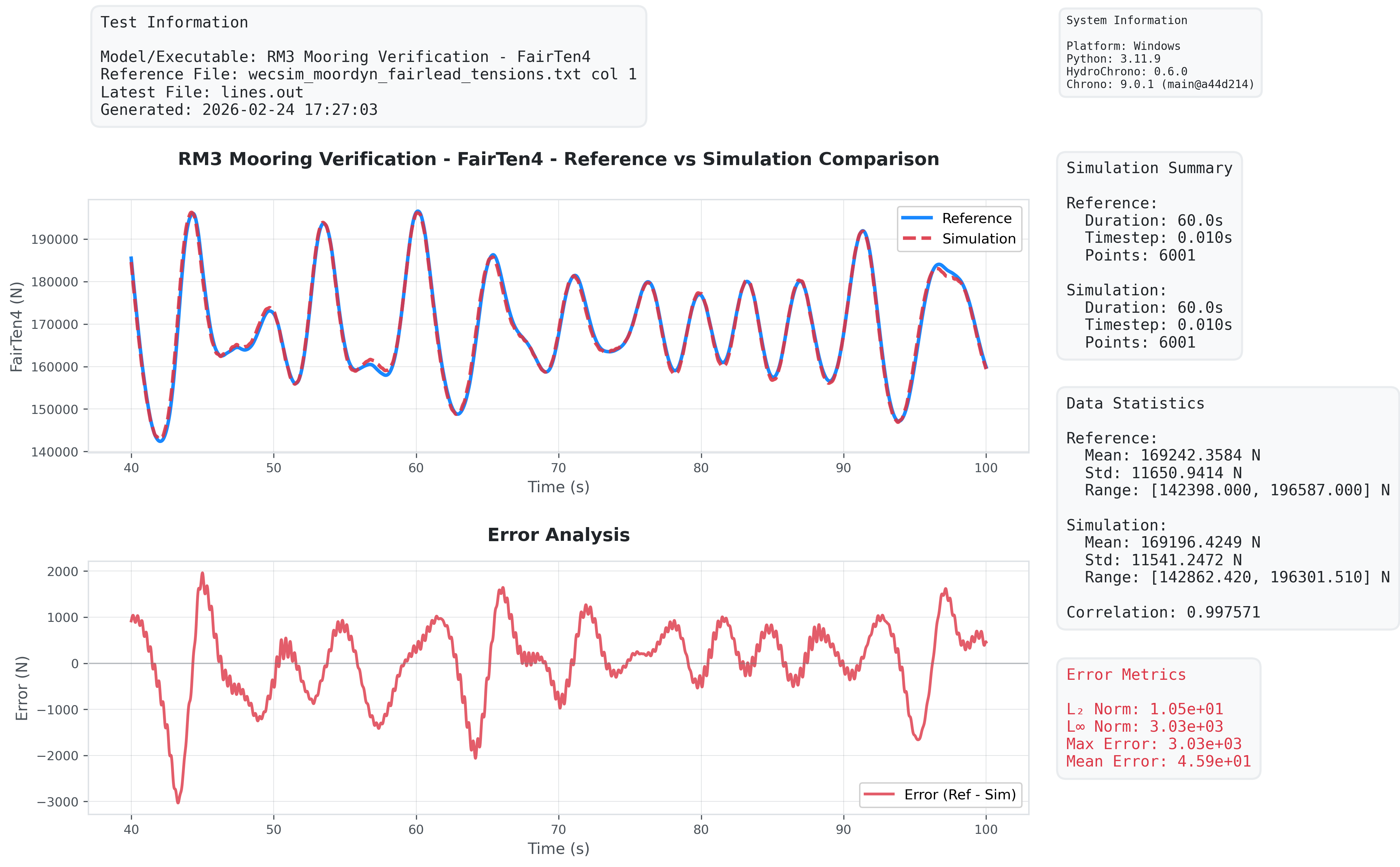

The verification compares body heave (float and plate) and fairlead tensions (FairTen4, FairTen5, FairTen6) from HydroChrono/MoorDyn against the WEC-Sim/MoorDyn reference. Below is the FairTen4 (fourth fairlead tension) comparison: the top panel shows reference vs simulation time series; the bottom panel shows the error (reference minus simulation).
Typical metrics for this run: correlation ≈ 0.998, mean error ≈ 46 N, max error ≈ 3 kN, L∞ norm ≈ 3 kN. Mean fairlead tension is on the order of 170 kN, so the max error is about 1.8% of mean tension.
Discrepancies
Remaining differences are small and are likely due to solver and integrator choices: HydroChrono uses Chrono’s HHT (Hilber–Hughes–Taylor) implicit integrator with GMRES, while WEC-Sim may use different time integration (e.g. Runge–Kutta). Small differences can also come from MoorDyn coupling details and wave-elevation interpolation. The close agreement (high correlation, low relative error) supports confidence in the coupled HydroChrono/MoorDyn implementation for this configuration.
References
- WEC-Sim Applications – Mooring — reference case used to generate the RM3 mooring reference data
- Reference data and provenance:
data/verification/rm3_mooring/reference/README.mdin the HydroChrono repository - MoorDyn input (mooring layout):
data/yaml/rm3/mooring/lines_rm3.txt
